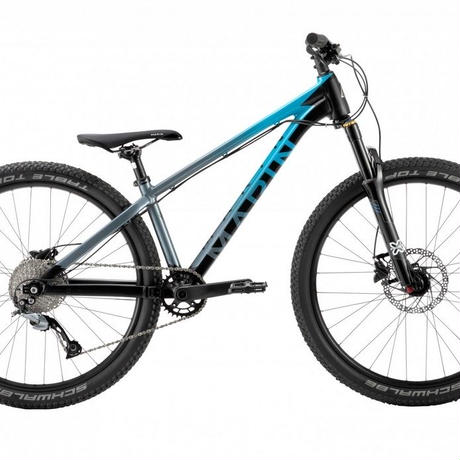

MARIN ALCATRAZ 完成車
5c5d3b816870246c72e7f7a3 5c5d3b816870246c72e7f7a3 5c5d3b816870246c72e7f7a3

MARIN ALCATRAZ 完成車

¥162,000 税込

送料についてはこちら

SOLD OUT

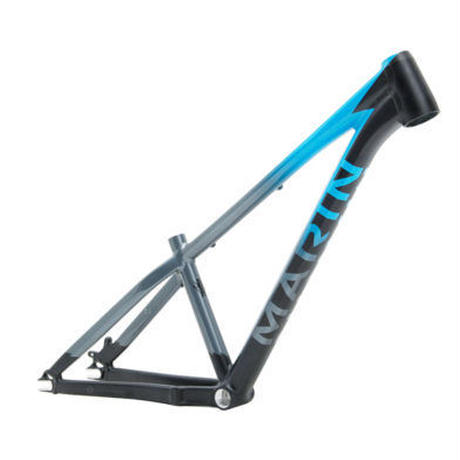

仕様は多少異なる事が御座います。 ●日本限定50台 ●1×9段変速 ●推奨用途:トレイル・ダートジャンプ ●軽量アルミフレーム ●ダートジャンプ用、フロントサスペンション ●Rider Driven サイズ:12″ 色: CYAN/BLACK 重量:12.1kg (適正身長) 12″:155cm~175cm Frame Series 3 6061 Aluminum Frame, 26” Wheels, 135x10mm Horizontal Dropouts, Single Speed or Geared Fork X-Fusion Slant RL2 DJ 100mm Travel, 100×15mm Thru-Axle Rim WTB SX25, 25mm Inner Rim Width, Double Wall, Pinned Joint, 32H Hub Rear Forged Alloy, 135x10mm, Bolt On, Quad Sealed Bearings, 6-Bolt Disc, 32H Hub Front Forged Alloy, 100x15mm, 6-bolt Disc, 32H Spokes 14g Black Stainless Steel Tires Marin tire26×2.25 Derailleur Rear Shimano Acera 9-speed Derailleur Front – Shift Lever Shimano Altus 9-speed Crankset Marin Forged Alloy, Alloy 32T Chainring, 104mm BCD, STD spacing Bottom Bracket External Sealed Cartridge Bearings Chain KMC X9 Cassette Shimano HG201, 11/36 9-Speed Brakes Front Shimano BR-MT201 Hydraulic Disc, 160mm Rotor Brakes Rear Shimano BR-MT201 Hydraulic Disc, 160mm Rotor Brake Levers Shimano BR-MT201 Hydraulic Disc Handlebar Marin Riser, 6061 Double Butted Aluminum, 38mm rise, 750mm Width, 4º Up, 9º Back Stem Marin Forged Alloy, 40mm Grips Marin Single Clamp Locking Headset FSA Orbit, Sealed Cartridge Bearings, 1 1/8″ x 1 1/2” Seatpost Marin Alloy 30.9 Saddle Marin DJ Saddle Pedals Marin Flat Type ONE SIZE A. STACK (MM) 575.5 B. REACH (MM) 401.84 C. HEADTUBE ANGLE 69° D. HEADTUBE LENGTH (MM) 115 E. SEATTUBE ANGLE VIRTUAL 71° F. SEATTUBE ANGLE ACTUAL 71° G. SEATTUBE LENGTH (MM) 320 H. TOPTUBE ACTUAL (MM) 563 I. TOPTUBE EFFECTIVE (MM) 600 J. BOTTOM BRACKET HEIGHT (MM) 317 K. BOTTOM BRACKET DROP (MM) 22 L. CHAINSTAY (MM) 395 M. WHEELBASE (MM) 1053.68
